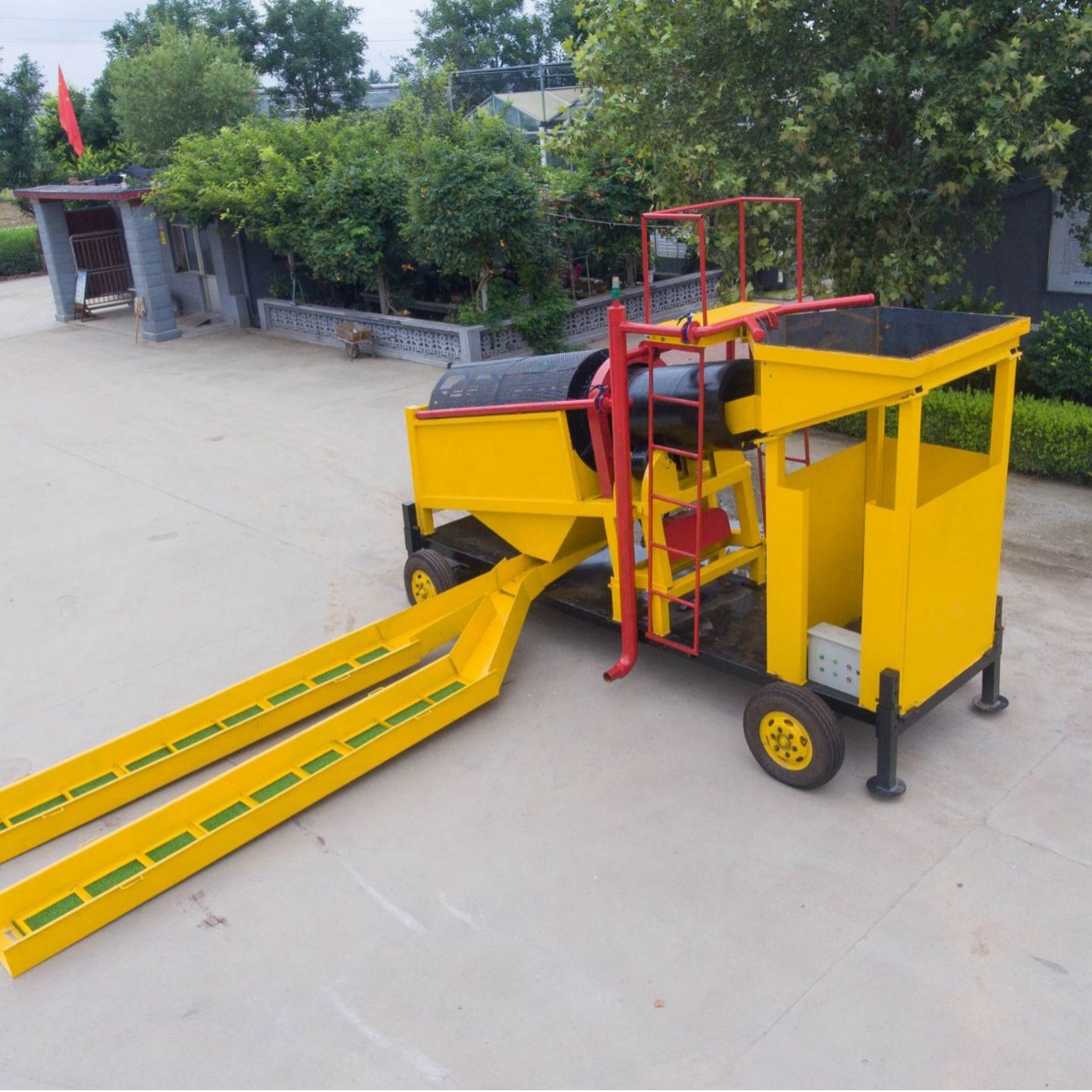

Gold ore washing plant
— Performance Features of Gold ore washing plant—
The trommel screen barrel is equipped with a feed diverter ring to minimize material loss.
The screen segments can be replaced modularly according to customer requirements. Customers can select woven mesh or perforated plates based on their own needs.
The trommel screen allows access to the screen mesh for maintenance and inspection.
An optional discharge belt conveyor is available; various types of belt conveyors can be provided for discharging materials after screening.
The main frame of heavy-duty steel structure is designed with components that reduce material accumulation.
The heavy-duty structure includes an integrated leveling system for easy installation.
— Specification of Gold ore washing —
| 规格型号
Specification |
滚筒直径
Diameter（mm） |
滚筒长度Length（mm） | 处理能力Capacity（T/h） | 功率Power（kw） | 出料Discharge（mm） | 进料Feedstock（mm） | 外形尺寸Dimensions（L*W*H)(mm) | 重量Weight（kg) |
| GMTS1848 | 2000 | 4800 | 150-200 | 15 | 0-100 | ≤400 | 9860*2300*3420 | 7200 |
Any detail inquires please feel free to contact us:
Sales Manager: Alanna.Liu
Mobile/Whatsapp: +8613849119469
Email Adds: alannaliu2049@126.com
