Washing gold trommel screen plant

— Equipment Overview of Washing gold trommel screen  —

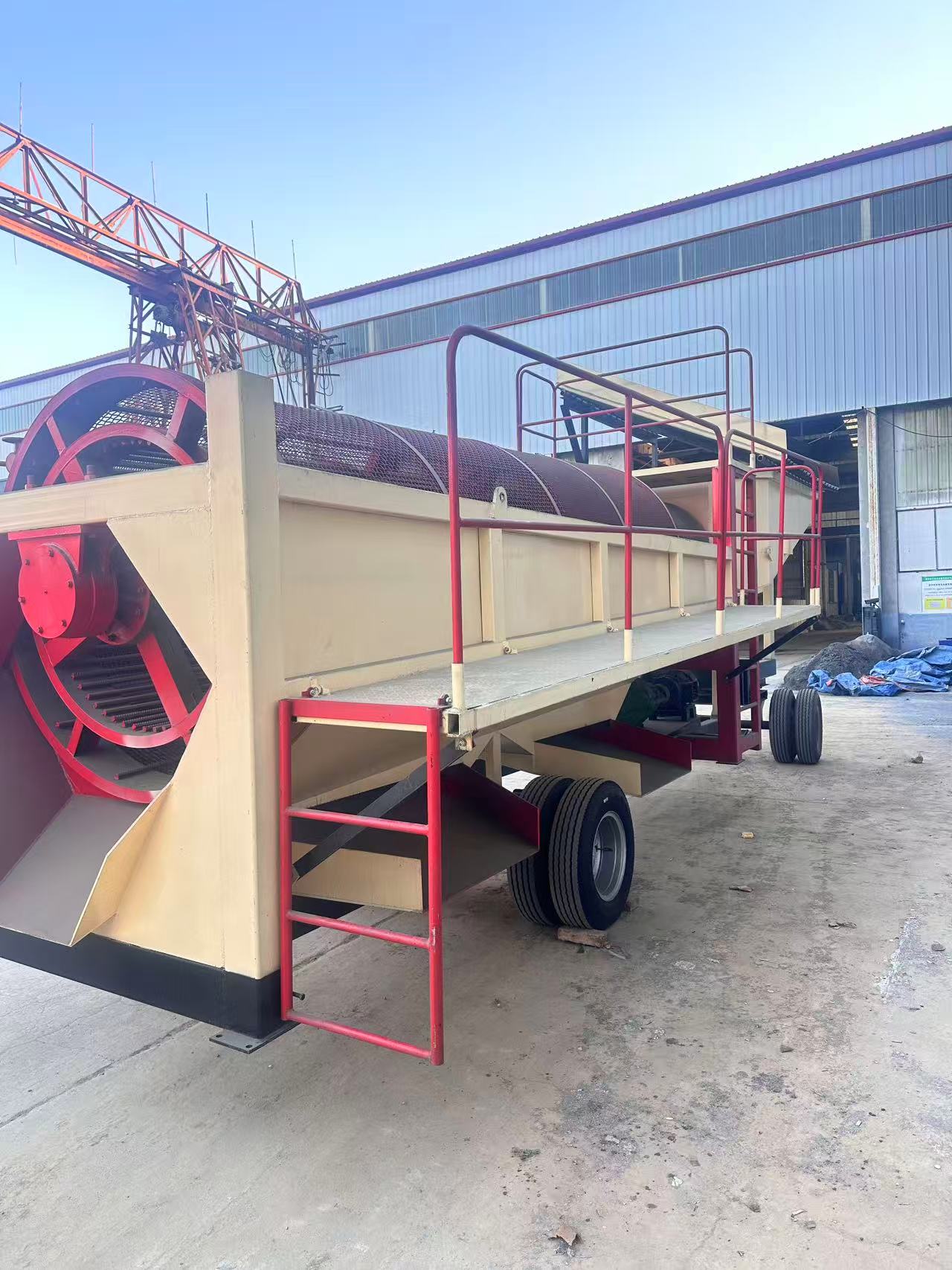

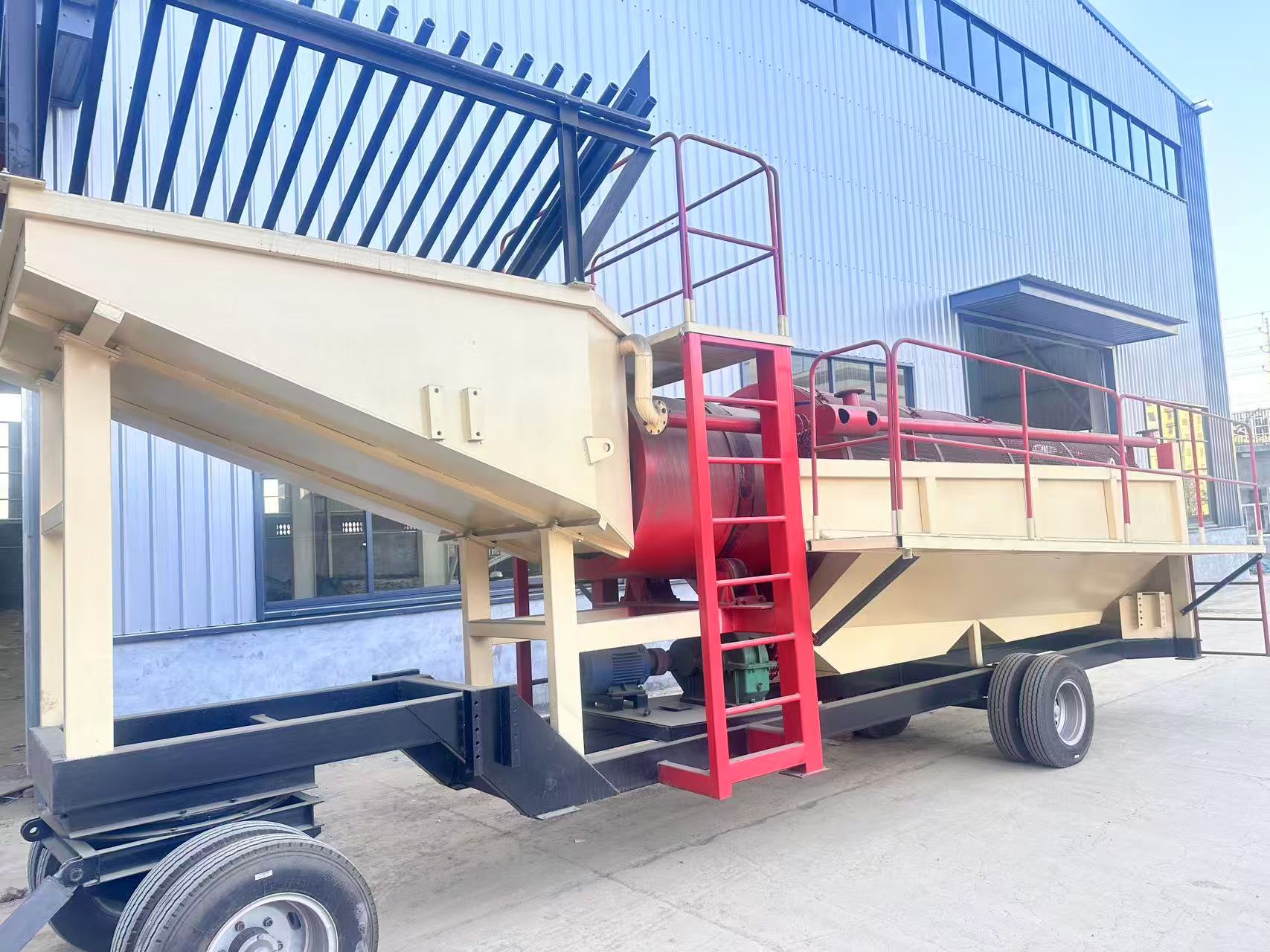

Gold mining equipment, also known as portable gold extraction equipment, is a type of machinery mainly used for sorting placer gold ore. As a mobile gold mining device, it can be fed manually or by a loader into the hopper. The materials are then screened by a trommel screen or a washing drum. Large-grained waste is discharged, while the remaining materials are further concentrated by a vibrating sluice box or a fixed sluice box.

— Specification of washing gold trommel screen —

—Core Structure of washing gold trommel screen—

Main Body: An inclined screening drum (composed of multi-section screen meshes for classification from fine to coarse). High manganese steel/stainless steel screen meshes are commonly used, and the drum body is made of carbon steel/stainless steel.
Drive System: A motor plus a reducer (or chain) that drives the drum to rotate at a low speed (usually 10–20 rpm).
Water Supply System: Central direct flushing + side spraying to strip clay and sediment from the surface of gold particles.
Auxiliary Components: Frame, feed hopper, discharge hopper, sealing cover, and comb-shaped screen cleaning mechanism (for anti-clogging).
