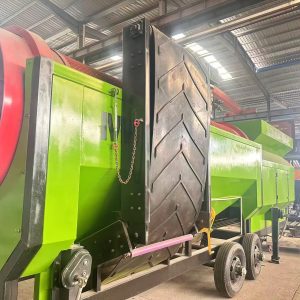

Cylindrical screen/Cage screen for gold washing plant

— Gold washing screen Equipment Overview —

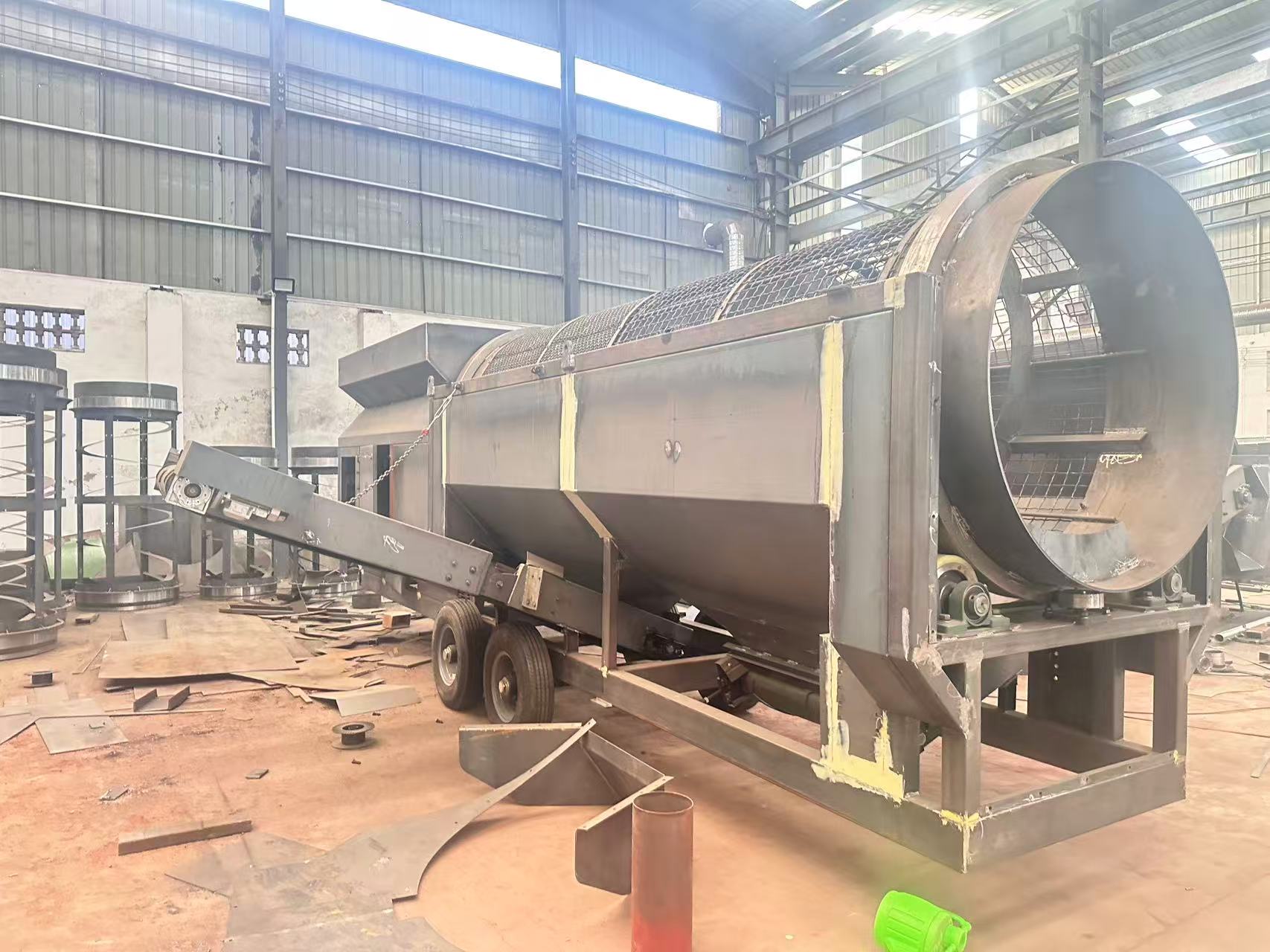

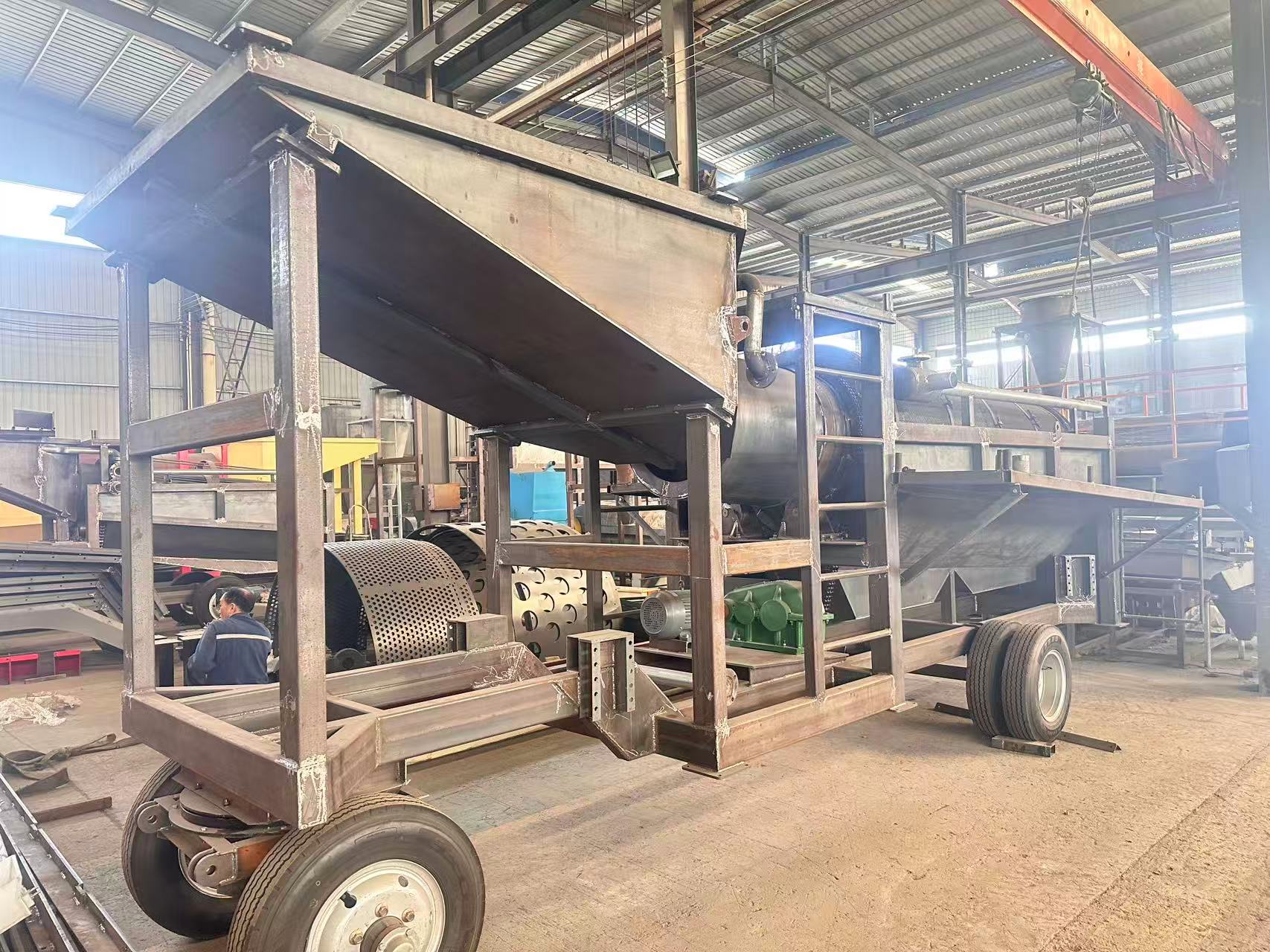

Gold mining equipment, also known as portable gold extraction equipment, is a type of machinery mainly used for sorting placer gold ore. As a mobile gold mining device, it can be fed manually or by a loader into the hopper. The materials are then screened by a trommel screen or a washing drum. Large-grained waste is discharged, while the remaining materials are further concentrated by a vibrating sluice box or a fixed sluice box.

—Gold washing screen Specification—

— Gold washing screen Performance Features —

The trommel screen barrel is equipped with a feed diverter ring to minimize material loss.
The screen segments can be replaced modularly according to customer requirements. Customers can select woven mesh or perforated plates based on their own needs.
The trommel screen allows access to the screen mesh for maintenance and inspection.
An optional discharge belt conveyor is available; various types of belt conveyors can be provided for discharging materials after screening.
The main frame of heavy-duty steel structure is designed with components that reduce material accumulation.
The heavy-duty structure includes an integrated leveling system for easy installation.

— Gold washing screen Core Advantages —

Anti-clogging & High Efficiency: Rolling scrubbing + water flushing solves the problem of screen clogging caused by wet and sticky materials. The screening efficiency can reach over 90%, which is superior to that of vibrating screens.
Flexible Mobility: Usually integrated on a trailer chassis, operable by 1–2 people. No disassembly is required for relocation, and it can be used immediately upon arrival at the mining area (plug-and-play).
High Gold Recovery Rate: Multi-stage screening + sufficient desliming fully expose gold particles. Combined with subsequent gold separation equipment, the gold recovery rate can reach over 90%.
Environmental Protection & Energy Saving: Sealed design reduces dust emission; optional water circulation system can save 70% of water.
