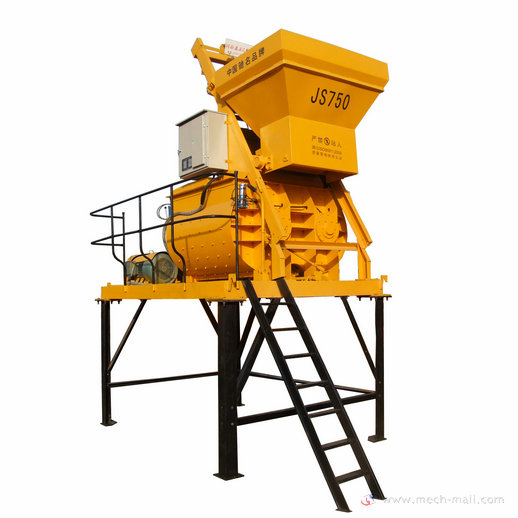

JS750 Concrete Mixer
Economic Version Concrete Mixer
Technical parameters of JS skip hopper type concrete mixer
| Type | JS500 | JS750 | JS1000 | |
| Charging Capacity | 800L | 1200L | 1600L | |
| Rated Capacity | 500L | 750L | 1000L | |
| Capacity of Production | 25m³/h | 45m³/h | 60m³/h | |
| Max. Feeding Size | ≤50mm | ≤60mm | ≤80mm | |
| Working Cycle | 72s | 72s | 60s | |
| Mixing Axle Speed | 31r/min | 29.3r/min | 19.5r/min | |
| Hoist | YEZ132S-4
5.5kw |
YEZ132M-4
7.5kw |
YEZ160L-4
15kw |
|
| Transmission System | YE3-180M-4
18.5kw |
YE3-200L-4
30kw |
YE3-250M-4
37KW |
|
| Water Supplied Device | BL12-16-1.1
1.1kw |
BL12-16-1.1
1.5kw |
80JDB-45
3kw |
|
| Total Weight | 3200kg | 5000kg | 7800kg | |
| Dimensions | Transport State | 3000×2530×2680 | 3400×2600×2500 | 3800×2400×2600 |
| Working
State |
3000×2530×2680 | 3400×2600×5500 | 3800×2400×8600 | |
Note：Standard configuration 3.8 meters high discharge hopper, suitable for pump truck to pick up finished product concrete. Other height of discharge: 1.5m/ 2.7m.

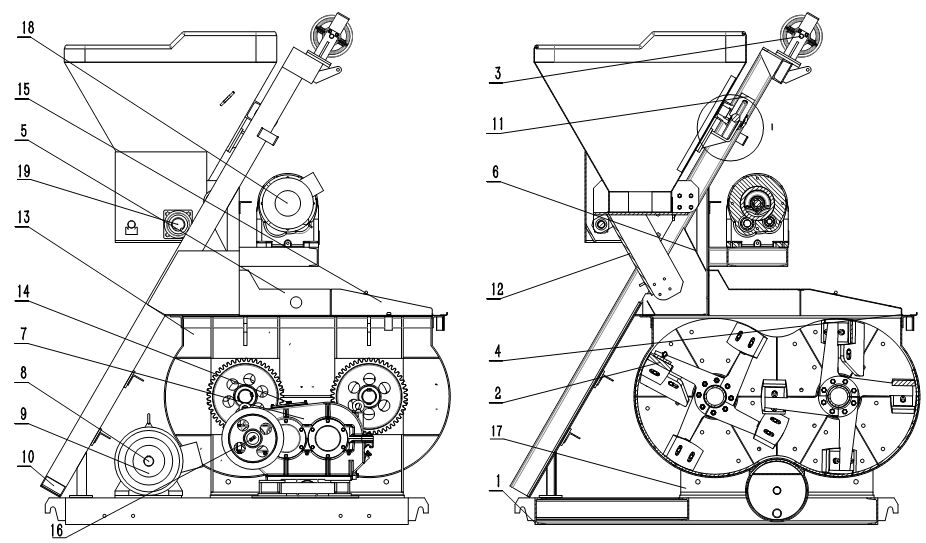

1 Base 2 Mixing Arm 3 Wire Rope Wheel 4 Front Cover 5 Rear Cover 6 Feed Port 7 (ZQ) Reducer 8 (YE2)Motor
9 Belt Pulley 10 Connecting plate 11 Limit Switch 12 Hopper Door 13 Mixing Chamber 14 Lubrication Cover 15 Dust Cover
16 Belt Pulley 17 Baffle 18 (YEZ)Lift Motor 19 Friction Wheel
